স্টেইনলেস স্টিল ক্যাসাভা স্টার্চ নাকাল মেশিন রাস্পার বৃহত ক্ষমতা
পণ্যের বিবরণ:
| Place of Origin: | Zhengzhou City,China |
| পরিচিতিমুলক নাম: | JINGHUA |
| সাক্ষ্যদান: | CE |
| Model Number: | DCM8435 DCM8450 DCM8465 DCM11070 |
প্রদান:
| ন্যূনতম চাহিদার পরিমাণ: | 1 বিন্যাস করুন |
|---|---|
| মূল্য: | আলোচনাযোগ্য |
| Packaging Details: | Customize the wooden case according to the size of the product，Each container can hold 4-6 pieces of products |
| Delivery Time: | 5-14 work days after receiving pre payment |
| Payment Terms: | L/C, D/P, T/T |
| যোগানের ক্ষমতা: | 20 সেট/মাস |
|
বিস্তারিত তথ্য |
|||
| Application: | cassava grinder machine | Energy: | Electric |
|---|---|---|---|
| Useful life: | 15 years | Capacity: | 15 t/h |
| অবস্থা: | নতুন | ইনস্টলেশন: | "হ্যাঁ" |
| Maintain: | Yes | Advantage: | large capacity |
| বিশেষভাবে তুলে ধরা: | কাসাভা স্টার্চ প্রসেসিং মেশিন,ক্যাসাভা স্টার্চ তৈরির মেশিন |
||
পণ্যের বর্ণনা

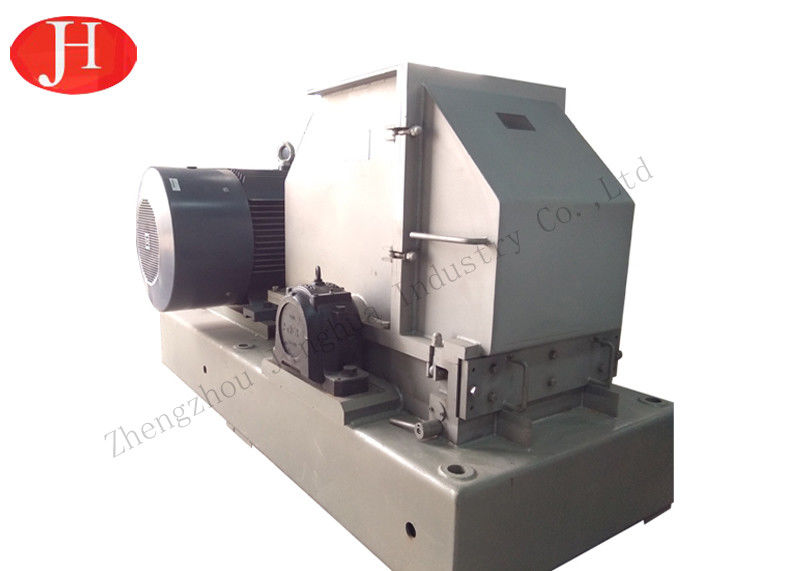

Large Capacity Stainless Steel Rasper Cassava Starch Grinder Processing Equipment
Product Description
Key Technology & Innovation Potions
1. All parts in contact with raw material are made of food-grade stainless steel, which protects materials from outer pollution.
2. High rotating speed, high line speed, excellent rasping performance, uniform particle, and high starch ionization rate.
3. Rotor is calibrated with international advanced dynamic-balance instrument, meeting G1 standard.
4. Components(bearings for example) are imported from Europe with longer service life
5. Unique sieve-tension gear makes disassembly easy.
Main Technical Parameters
1. Engine base props up all components, which rotor and bearings are all fixed on.

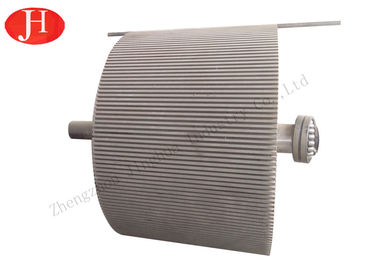

2. Rotor is made of special stainless steel, uniform grooves on the surface to install saw blade.

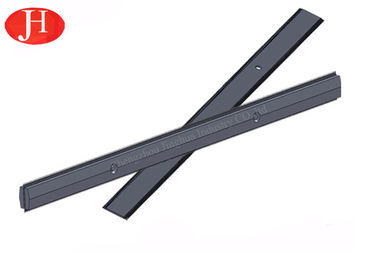

3. Saw blade is comprised of 2 stainless-steel layer with locating pin and a saw blade.
4. Combined rasping blade are equipped on both side of rotor, which could achieve rotor two-way rotating and crests higher crushing rate.
5. For easy operation, upper shell divides into two parts, upper cover and side cover.
Main Technical Parameters
| Model | DCM8435 | DCM8450 | DCM8465 | DCM1070 |
| Main shaft rotating speed(r/min) | 2100 | 2100 | 2100 | 1470 |
| Drum diameter(mm) | Φ840 | Φ840 | Φ840 | Φ1100 |
| Drum width(mm) | 350 | 500 | 650 | 700 |
| Power (Kw) | 110 | 160 | 200 | 250 |
| Capacity(t/h) | 20-23 | 30-33 | 35-40 | 40-45 |
| Dimension(mm) | 2170x1260x1220 | 2170x1385x1250 | 2170x1650x1380 | 3000x1590x1500 |
Packing & Shipping
Packing : Customize the wooden case according to the size of the product.
Delivery :14days after receiving pre-payment (on time according to contract strictly)
