বিস্তারিত তথ্য |
|||
| Application: | Food Flour Grinding Mill Machine | Function: | Grinding, Separating, Concentrating |
|---|---|---|---|
| Advantage: | High Effective | Control: | PLC Control |
| Product Name: | Sweet Potato Starch Machine | Processing Type: | Continuous |
| Material: | Stainless Steel | Screen: | Stainless Steel |
পণ্যের বর্ণনা

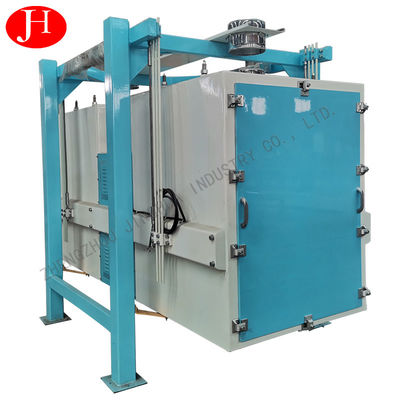

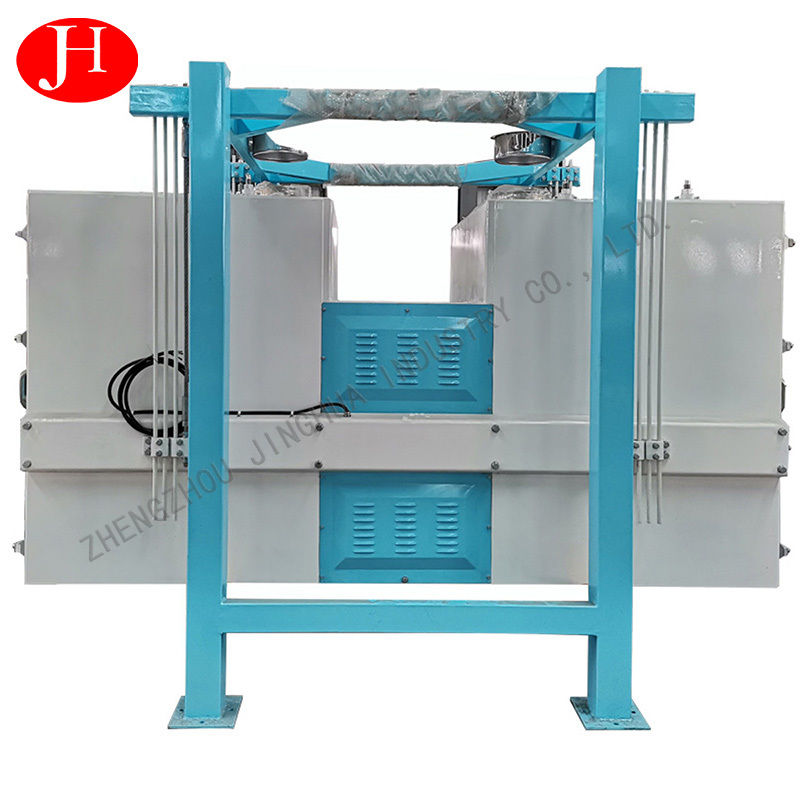

The machine is composed of two main parts: the mild steel frame mounted with clamps for the flexible suspension rods, floor plates for mounting and the mild steel box section for the sieve frames with upper clamping by means of a metal frame and clamping pressure micrometric screws.
The drive unit with counter balance weight, with motor, pulleys, v-belt is mounted under the cabinet box section, adjustable to suit different applications. Material is fed into the top and by the machines circular motion, the fine material moves through the sieve mesh and is discharged out each sieve side to outlets, while the course material over tails and sent to separate outlets.
Main technical parameters
|
Model |
Bin (Piece) |
Number of sieves (piece) |
Capacity (t/h) |
Diameter (mm) |
Power (Kw) |
Weight (kg) |
Dimension (mm) |
|
GDSF2*10*100 |
2 |
10-12 |
8-10 |
Φ45-55 |
2.2 |
1200-1500 |
2530x1717x2270 |
|
GDSF2*10*83 |
2 |
8-12 |
5-7 |
Φ45-55 |
1.5 |
730-815 |
2120x1440x2120 |
|
GDSF1*10*83 |
4.5 |
2-3 |
3-4 |
Φ40 |
0.75 |
600 |
1380x1280x1910 |
|
GDSF1*10*100 |
6.4 |
3-4 |
4-5 |
Φ40 |
1.5 |
750 |
1620x1620x1995 |
|
GDSF1*10*120 |
7.6 |
4-5 |
5-6 |
Φ40 |
1.5 |
950 |
1890x1890x2400 |
Real application case
Pre-sale service
1.Introducing detail features and application of the products to customer.
2.Selecting economical and practical machines for customer.
3.Providing operation data of the related machine.
4.Providing means of trial performance for customer.
5.Flow chart and factory designing layout .
Sale service
1.Recommending engineering conditions required for installation of the machine.
2.Communicating the manufacturing progress of machines with customer in time.
3.Project planning and design services;
After-sale service
1.Training of equipment maintenance and operating personally.
2.Installation and commissioning of equipment until everything is functional.
3.One year warranty and Providing long-term maintenance service and spare parts.
4.Giving technical support to customer for developing new product.
5.Engineers available to service machinery overseas.
6.Provide English Version of Installation/Operation/Service/Maintenance Manual.
Jinghua company is a specialized engineering technology company specializing in various starch engineering design, equipment manufacturing, engineering installation and debugging, technical personnel training and other work. Has two modern large factory, engineering and technical personnel more than 30 people, can provide installation services overseas. Our company has undertaken national and provincial scientific research projects.,with more than 10 invention patents.The chairman of the board is professor wang yanbo, who is mainly engaged in theoretical research on the transformation and utilization of grain resources, teaching, scientific research and engineering design of starch and its deep processing direction, and research and development of modern equipment. He has published 7 scientific works, 6 national standards and 30 academic papers.
Our Factory
Q1: Is your company a factory or trading company?
A: Our company is a factory in Henan Province ,with export license
and we have done export business over 20 years professionally.
Q2.What is your main business?
A: Zhengzhou jinghua is devoted to starch processing machine. The machine of starch processing line , such as : cassava starch line , cassava flour line , potato starch line , sweet potato line , wheat starch ,sago line and garri line
Q3:Where is your factory located? How can I visit there?
A: Our add: Zhengyun Road and Guanggu Road intersection , Guangwu Town , Zhengzhou City , Henan Province , China.
Warmly welcome to visit us!
Q4: Are your products can be assured ?
A: Our machines are all passed ISO9001:2001 and have CE certificate by SGS, TUV.
Q5: If we show you our layout of factory, can you help us to design the whole process line?
A : Yes, our experienced engineers and technical employees can help you to arrange the layout and installation of whole process line based on your real situation;
Q6: If we have samples of new products, can you help us to analysis and design the machine?
A: Yes, Our technical department can help you to analysis, design and test the new products you offered.
